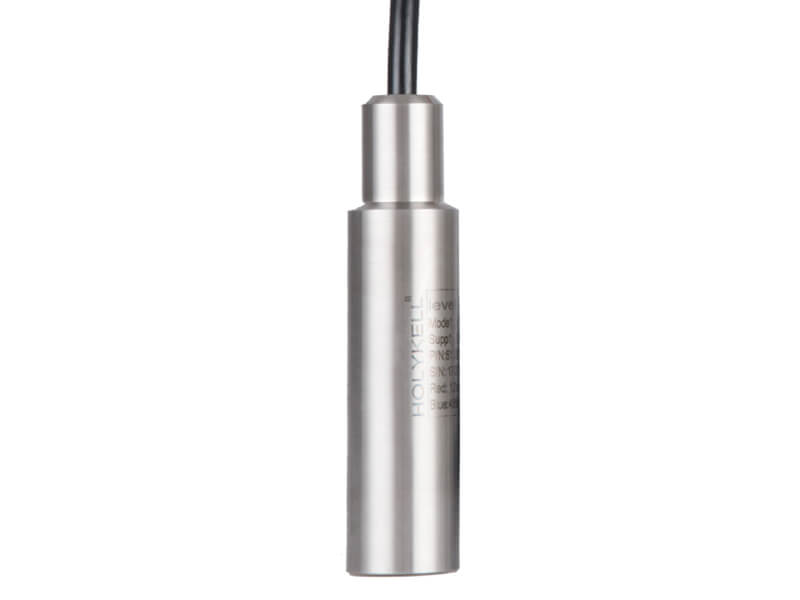

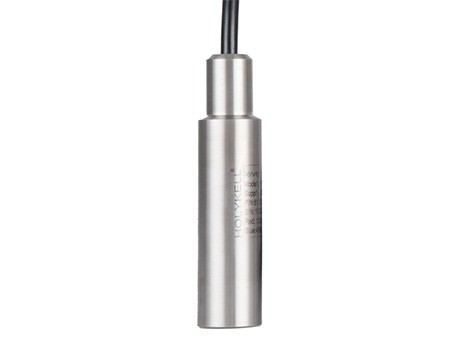

HPT613-S Submersible Ceramic Capacitance Level Sensor

HPT613-S Submersible ceramic capacitance level sensor is a liquid level measuring instrument with high stability and precision. It adopts fully sealed 316SS stainless steel body and ceramic core body, high explosion-proof and easy to clean.

Application :

● Water level measure

● Corrosive liquid level measurement

● Level measurement in telecom base station

● Oil level measurement

Advantages
01Surge protection from lightning strikes and voltage spikes
02Ceramic pressure cell resistant to 10x burst pressure
03Rugged design: Ingress protection up to IP 68
04Lightning (Surge) Protection
05Excellent Long Term Stability
06CE/ATEX Certificate approved
Resources

Holykell-Measuring Instrument

Technical Data

Range

0~1 M...200 M H2O optional

Output

4~20mA;0-10V/0.5-4.5V;4-20mA HART;RS485 RTU Modbus

Temperature output

4~20mA or resistance signal; Range: -10…100 degree C

Accuracy

0.1%F.S;0.15%F.S;0.25%F.S optional

Working temperature

-20°C~+80°C

Temp Compensation

0°C~70°C

Power supply

12VDC~36VDC

Medium Compatible

316L Flush diaphragm ,316 SST,Titanium Alloy

Process connection

Flange or throw-in type

Zero Temp. Drift

0.03%FS/°C(≤100kPa); 0.02%FS/°C(>100kPa)

FS Temp. Drift

0.003%FS/°C(≤100kPa); 0.002%FS/°C(>100kPa)

Certificate

CE,ExiaII CT6 Ga ,ATEX,RoHS

Application

Corrosive medium

Order information

Level range : 0-0.5m , Output : 4-20mA , Power supply : 12~36VDC ,

1m directly cable : IP68
