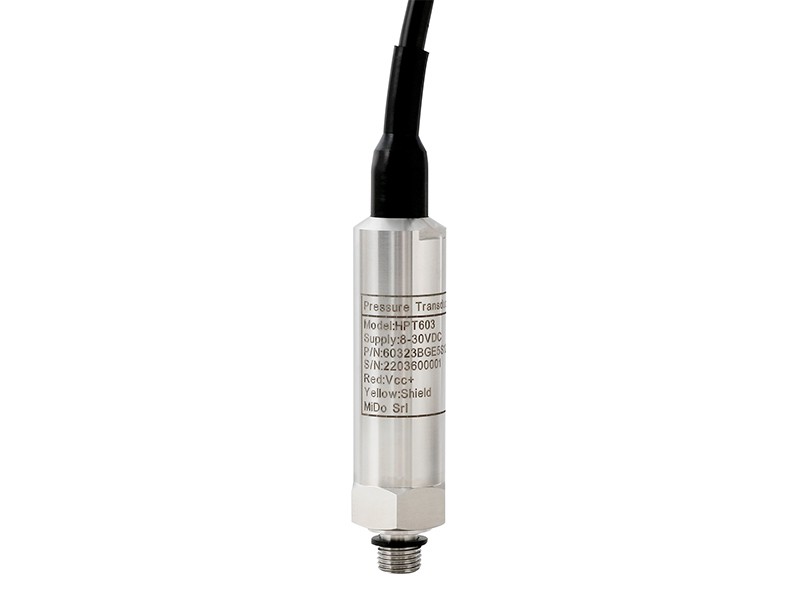

HPT603 Submersible Liquid Level Transducer With Thread or Flange Interface

HPT603 submersible liquid level transducer is mainly used for liquid depth measurement. Due to different measuring environment, it is divided into threaded interface and flange interface.

Application :

●Vessel and Storage Monitor System

●Control of Lift and Pumping Stations

●Level Measurement in Oil Tanks

●Monitoring of Gasoline & Diesel Fuel Tanks

Advantages
01Customizable installation thread or flange interface
02Fully sealed 316SS stainless steel housing and 316L flat film design
031/2 bits LED/LCD Screen Locally Display optional
04IP68 full sealed plastic waterproof design
05High accuracy TE pressure core with 0.25%FS
Resources

Holykell-Measuring Instrument

Technical Data

Range

0-0.5 M…500 M H2O optional

Output

4~20mA,0~5V/0~10V/0.5~4.5V;RS485 ,RS232

Power supply

12VDC~30VDC/5Vdc or Battary supply

Pressure port

M20*1.5 male or Flange 2"3"by customized

Accuracy

0.15%F.S,0.25%F.S, 0.5%F.S optional

Working temperature

-30°C~+85°C

Temp Compensation

-10°C~60°C or by Customized

Zero Temp. Drift

0.03%FS/°C(≤100kPa); 0.02%FS/°C(>100kPa)

FS Temp. Drift

0.003%FS/°C(≤100kPa); 0.002%FS/°C(>100kPa)

Electronic connection

Fixed cable and water proof IP68

Process Connect

M20*1.5 male or Flange 2"3"by customized

Response time

≤4 to 10 ms; ≤1 ms (Customized)

Cable optional

PE Cable( Water Proof ); PUR Cable( Oil Proof );

PTFE Cable( Anti-Corrosive )

Certificate

CE,ExiaII CT6 Ga ,ATEX,RoHS

Order information
Level range: 0-5m        Output: 4-20mA         Power supply: 12~36VDC
