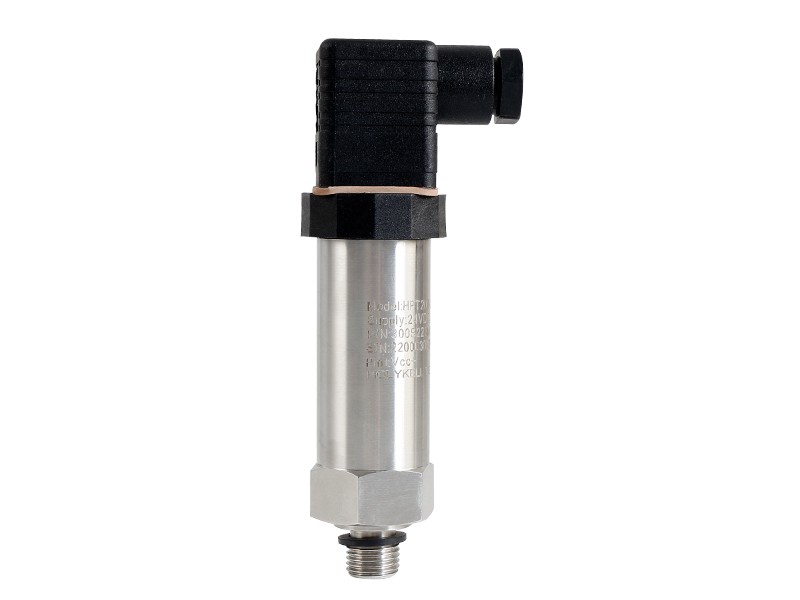

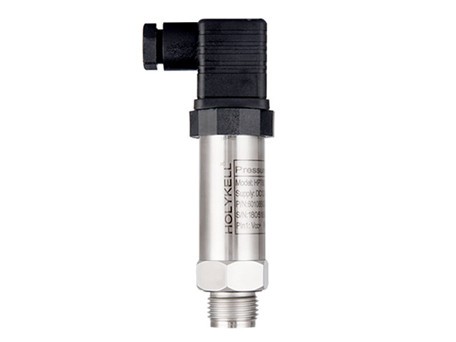

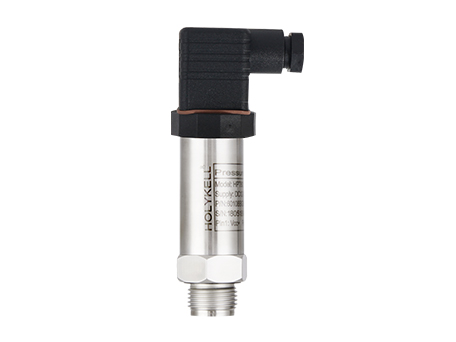

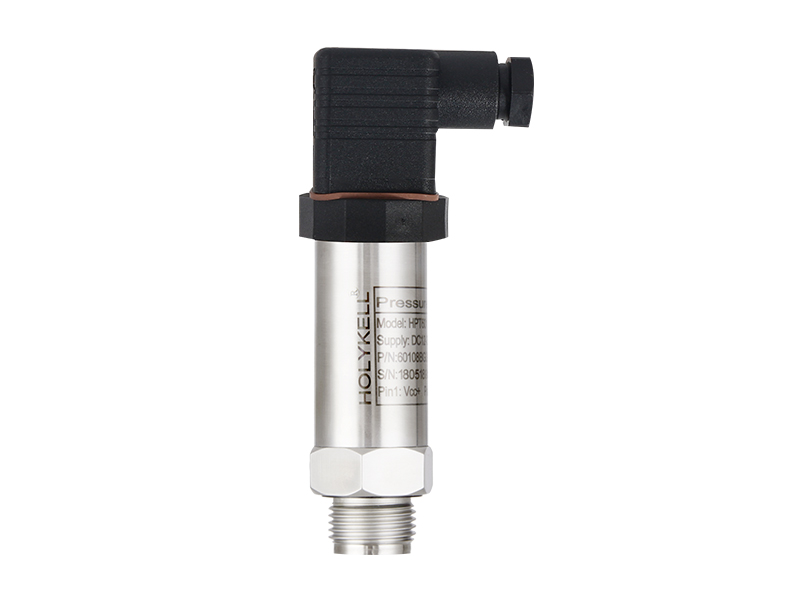

HPT601 Flat Diaphragm Pressure Sensor

Flat diaphragm pressure sensor with sanitary flush diaphragm. All process connections of the flush pressure transmitter are made of stainless steel, fully welded and isolate the process medium from the pressure measuring instrument via a positive seal.

Application :

● Food and beverage industry

● Filling and packing machinery

● Dairy and beverage processing

● Pharmaceutical

● Dosing technology

Advantages
01A reliable, dead-space free sealing between the process connection and the measuring medium is thus assured
02For Sanitary or CIP (Clean-in-Place) Applications
03316L stainless steel diaphragm, welded 316SS body construction shock and erosion
04Custom pressure ranges from 0-1m thru 0-500m
05Flush process connection eliminates plugging
Resources

Holykell-Measuring Instrument

Technical Data

Range

0~0.2 bar…600 bar optional

Output

4~20mA,0~5V/0~10V/0.5~4.5V,Digital RS485

Accuracy

0.15%F.S,0.25%F.S, 0.5%F.S optional

Power supply

12VDC~30VDC /7-30V

Pressure port

G1/2",G1",M20*1.5 male  Clamp Φ50 mm

Working temperature

-40°C~+150°C

Temp Compensation

-10°C~80°C or by Customized

Zero Temp. Drift

0.03%FS/°C(≤100kPa); 0.02%FS/°C(>100kPa)

FS Temp. Drift

0.003%FS/°C(≤100kPa); 0.002%FS/°C(>100kPa)

Response time

≤4 to 10 ms; ≤1 ms (Customized)

Certificate

CE,RoHS

Application

Food ,Juice,milk ,Sanitary liquid industry

Order information

Pressure range : 0-20bar , Output : 4-20mA , Power supply : 12~36VDC ,

Process connection : G1/2"male , 5m directly cable : IP66 .
