CYX20 Piezoresistive Differential Pressure Sensor

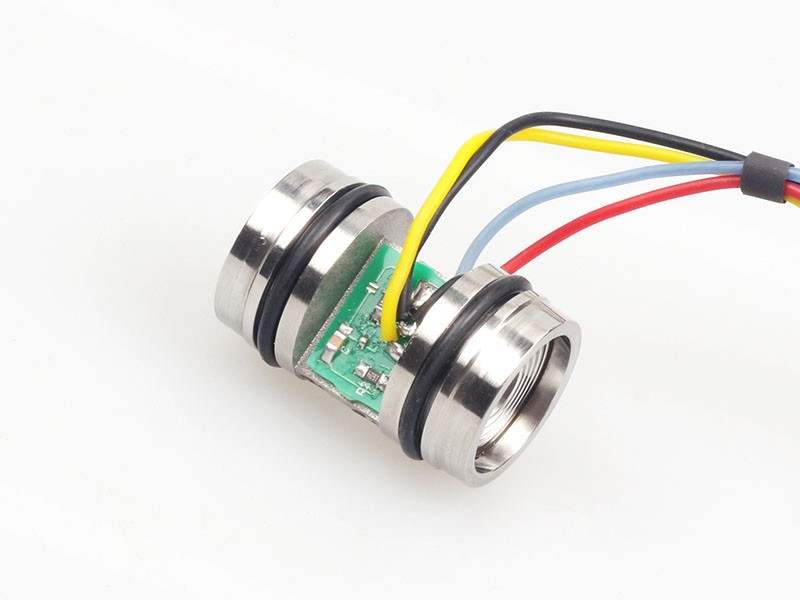

CYX20 Piezoresistive differential pressure sensor is OEM differential pressure sensor with stainless steel isolated diaphragm. It has integrated construction, high static pressure, high stability and good reliability.

Application :

● Industrial process control

● Gas, liquid pressure measure

● Pressure checking meter

● Pressure calibrator

● Differential pressure measure

● Ventura and eddy-current flow meter

Advantages
01Pressure range ,0~35Kpa,10kPa~3.5MPa
02Constant current power supply
03Isolated construction, enable to measure various media
04OEM differential pressure sensor
05Full stainless steel 316L
06High static pressure 20MPa
Resources

Technical Data

PARAMETERS

TYP

MAX

UNITS

NOTES

Pressure range

0-3.5



MPa



FS output

100

--

mV



Zero output

±1

±2

mV



Non Linearity

0.2

0.5

%FS



Hysteresis

0.05

0.1

%FS



Repeatability

0.05

0.1

%FS



Zero Temperature drift

±0.4

±1.6

%FS

10kPa @25℃

Zero Temperature drift

±0.15

±0.8

%FS

≥35kPa @25℃

Temperature Error Sensitivity

±0.4

±1.6

%FS

10kPa @25℃

Temperature Error Sensitivity

±0.2

±0.7

%FS

≥35kPa @25℃

Long-term Stability:

±0.10



%FS



Temperature Compensation:

0-50

80

°C

Optional

Working Temp:



125

°C



Storage Temp:



125

°C



Lifetime

1×108



Pressure cycle(FS)

25℃
